EBS-2600

Highest Resolution

Free adjustable graphics, barcodes, texts in highest resolution of 510dpi at an print height of 71,8mm. Oil-based inks provide excellent adhesion to absorbent substrates. Thus, the print remains durable for a long time even with intensive use of the print object.

Economical and environmentally friendly. Efficiency that pays off

Extremely low power consumption of 15 watts maximum. Oil-based inks with no need for fume-intensive solvents. We move with the times and prove that industry and ecological action do not have to be mutually exclusive.

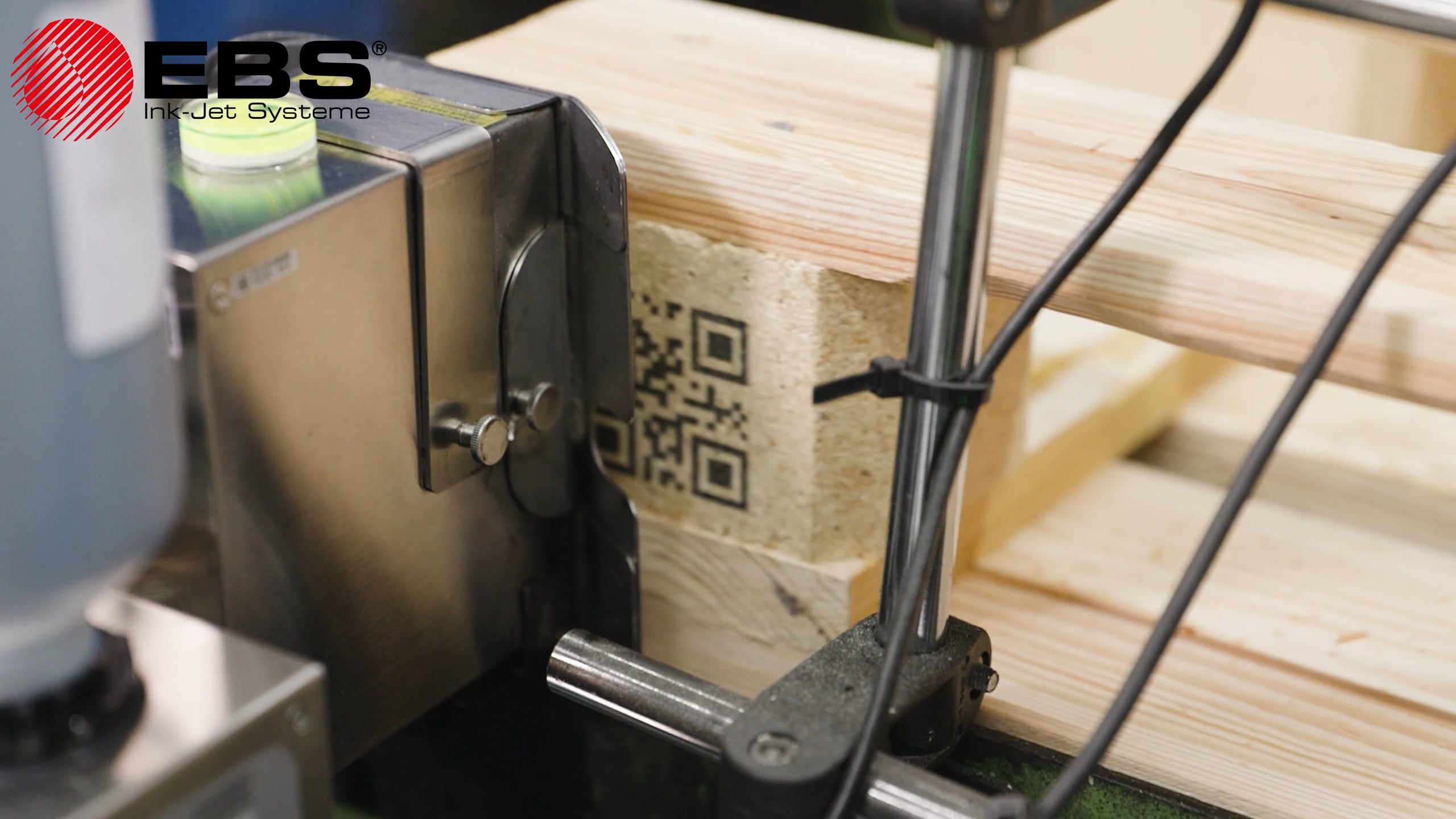

Printout gallery

Parameters

Physical facts

Housing stainless steel

Dimensions
210 x 160 x 420mm

Weight  4.800g (without ink)

Technical data *)

Number of printheads 1

Printer position during printing  horizontal

Distance from the printhead to an object  for perfect results, EBS-2600 should have the smallest possible distance to object, but not more than 4mm

Connections

  • USB
  • ETHERNET
  • INTEGRATED PHOTOCELL
  • OPTION PORT (shaft encoder, sensors…)

Terminal to program the printer, you don’t need to use the integrated terminal. You also can use an Ethernet connected PC to control the printer

Working conditions

Environment

  • temperature: 5°C – 40°C
  • Relative Humidity: 10-85% without water condensation

Power supply

  • 100-240 V AC / 50-60Hz(1~) / max. 0,65-0,3A
  • Power consumption: max 15W

Required inactive time none, the unit was developed for permanent operation

Specifications *)

Print height  up to 71,8mm

Maximum resolution

  • 510dpi

Storage Space 4GB

Graphics

  • Monochrome PNG – graphics can be created i.e. with Paint or other software.

Barcodes1) EAN 8, EAN 13, EAN 128, Code 2/5, Code 2/5 check, Code 39, Code 39 check, Code 128, DUN14, GS1 Databar

2D-Codes1) Datamatrix, GS1 Datamatrix, OR-Code, PPN-Code

Automatic functions Date, Time, Counter, customer-specific links

Max. print speed in m/min at 1280dpi

  • up to 60m/min.

Consumables

Ink  Oil-based

*) note –  the manufacturer reserves the right that:
the range of available features, options and printer parameters may vary and depend on the option you have negotiated

There is geographically limited availability for the unit. Please check availability in your country by making an individual enquiry with us.
