EBS-6600

Boltmark II

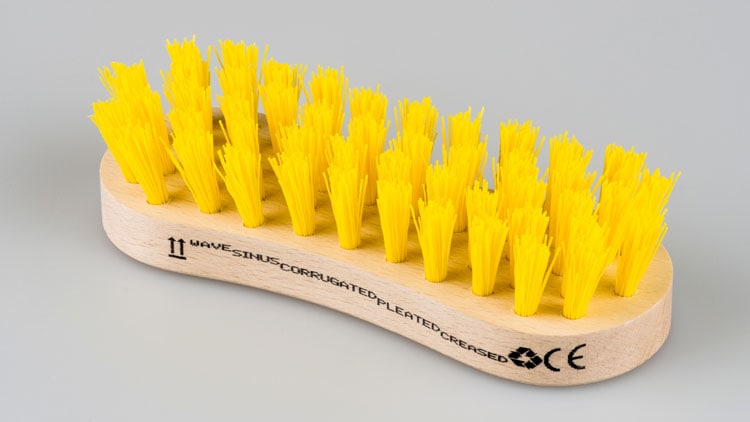

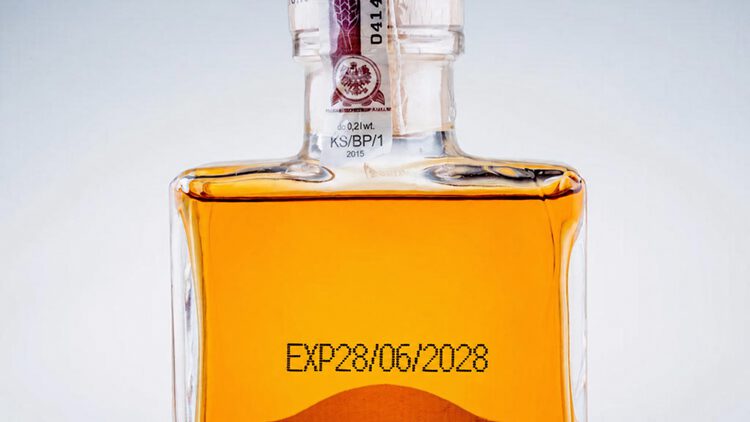

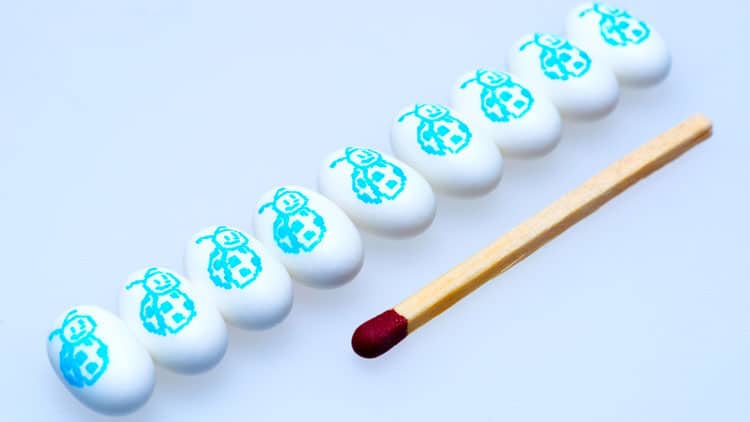

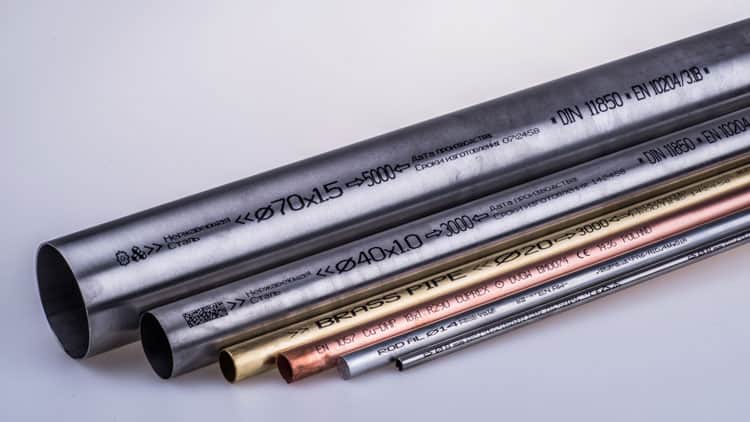

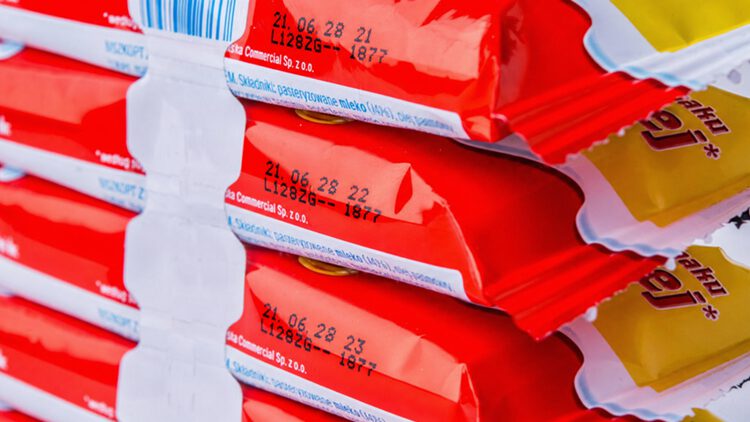

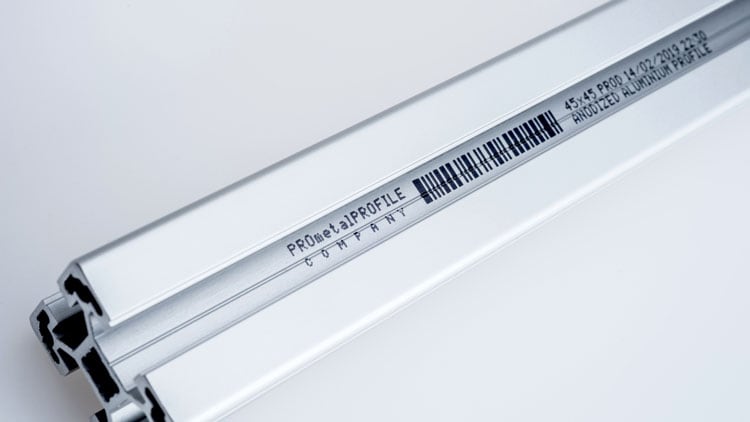

Our EBS-6600 is the first model from the brand new Boltmark II-series. It’s an industrial single-head Ink-Jet printer designed for coding moving objects on a factory conveyor without requiring direct contact. It’s able to code from 0.8 mm up to a maximum of 14 mm height with a max. amount of up to 25 dots [depending on text profile].

Anti-Clogging (ACPS)

As the first one on the market, with our new “ACPS” we are capable to deal with a power failure in a new way. Up to 30 seconds the coder can print on after electricity is gone. If the power does not come back soon enough, the printer will clean itself and automatically shut down. This feature is available as an option.

Schutzklasse – IP55 als Standard

IP55 – Protection of the housing against the ingress of water and dust allows to ensure the reliability of the coder for a long time. The printer’s keyboard and screen and all ports are resistant to chemicals and water jets from any direction.

ACPS - Anti Clogging Power Supply

World first: For the first time in a continuous ink jet printer, an intelligent system ensures reliable printer operation in the event of a power failure. If the power supply is interrupted for less than 30 seconds, the printer continues to operate. If power is interrupted for more than 30 seconds, the printer starts the automatic shutdown process, including flushing, to protect the lines from dried ink deposits. Once power is restored, the printer is quickly ready to operate again. The ACPS contains very long-life Super Charger capacitors, not conventional rechargeable batteries. Recharging takes only about 2 minutes. The ACPS is available as an option (for EBS-6600 and EBS-6900 only).

Simple maintenance (Optional IP65)

The EBS BOLTMARK II series is equipped with an integrated ink system that can be changed in 3 simple steps in less than a minute: Open flap, remove used iModule®, insert new iModule® – done! No technician and no tools required. Likewise, the quick change of ink and solvent bottles works the same way. No interruption of the printing process, no unscrewing of the bottle cap and no dirty fingers: remove the used bottle, insert the new one – click!

Protection class IP55 and IP65

The high protection class of the housing against water and dust penetration guarantees high reliability of the printer over a long period of time. Keyboard, display and connectors are protected against chemicals and splashing water from all directions. All electronic and mechanical parts are protected from external influences by special mechanisms. For special requirements, protection class IP65 can also be upgraded as an option.

High efficiency

With a power consumption of only 19W, the printers of the Boltmark II series are currently the most efficient inkjet printers on the market. In addition, the printers are very economical in terms of ink and solvent consumption.

ACPS – Anti Clogging Power Supply

Worldwide innovation: for the first time in a Continuous Ink Jet Printer, a built-in automatic and intelligent system provides reliable printer operation in case of power failure. Should the power be interrupted for less than 30 seconds, the printer continues operating. If the supply is cut off for more than 30 seconds, the printer starts the automatic shutdown procedure including rinsing, to protect the tubes from dried ink deposits. As soon as the power is restored the printer is quickly operational again. The ACPS contains very long-lasting Super Charger Capacitors, not conventional accumulators. Charging lasts only around 2 minutes. The ACPS is available optionally (only for EBS-6600 and EBS-6900).

Parameters

Physical facts

Housing stainless steel

Housing dimensions

  •  width 300mm
  •  hight 458mm
  •  depth 211mm

Printhead dimensions straight diameter Ø 40mm; length 199mm

Weight about 12,5kg without fluids

IP protection class, printer casing(excluding the printhead) IP55 (standard)

Technical data *)

Number of printheads 1

Printer position during printing vertical

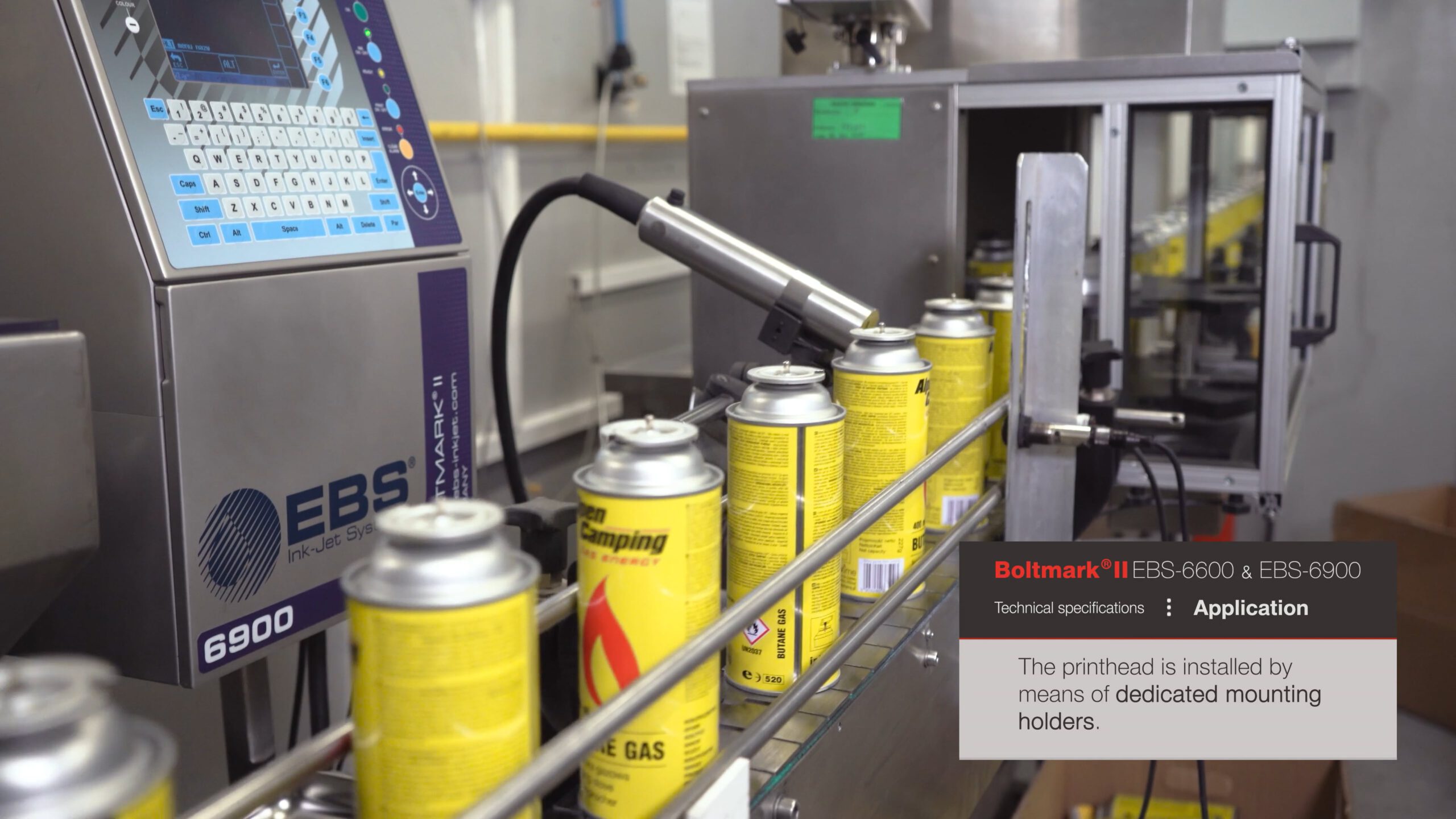

Printhead position during printing any

Head cable

  • head cable length 3m

Distance from the printhead to an object from 0 to 30mm

Connections

  • USB, current efficiency 300 mA
  • ETHERNET
  • PHOTO (photodetector input)
  • SHAFT (shaft encoder input)
  • optional connections (e.g. RS-232)

Terminal a built-in terminal equipped with an air tight, splash proof, chemicals resistant alphanumerical keyboard and a big touch control LCD (touch screen)

Working conditions

Enviroment working temperature from

  • +5 to +40°C (from 41 to +104°F), for static operation
  • +15 to +40°C (from +59 to +104°F) for dynamic operation
  • relative humidity: up to 90% without condensation

Acceptable exposure to vibration and impacts

  • vibration: max. 1g, max. 10Hz
  • shocks:    max. 1g, max. 2ms

Power supply

  • supply voltage: 100-240 VAC, 50/60 Hz
  • max. current consumption: 0,6 – 0,2 A

Compressed air not required!!!

Required inactive time none, the device can rund uninterruptedly for 24 hours

Specifications *)

Print height from 0,8 to 14mm

Maximum dots 16 (optional 25)

Number of texts 100

Graphics

  • edited with graphics editor
  • maximum height is determined by selected text profile

Consumables

Type of ink non pigmented, based on methyl-ethyl ketone or ethanol

Ink color black, different versions available

*) note – the manufacturer reserves that:
the range of available features, options and printer parameters may vary and depend on the option you have negotiated
