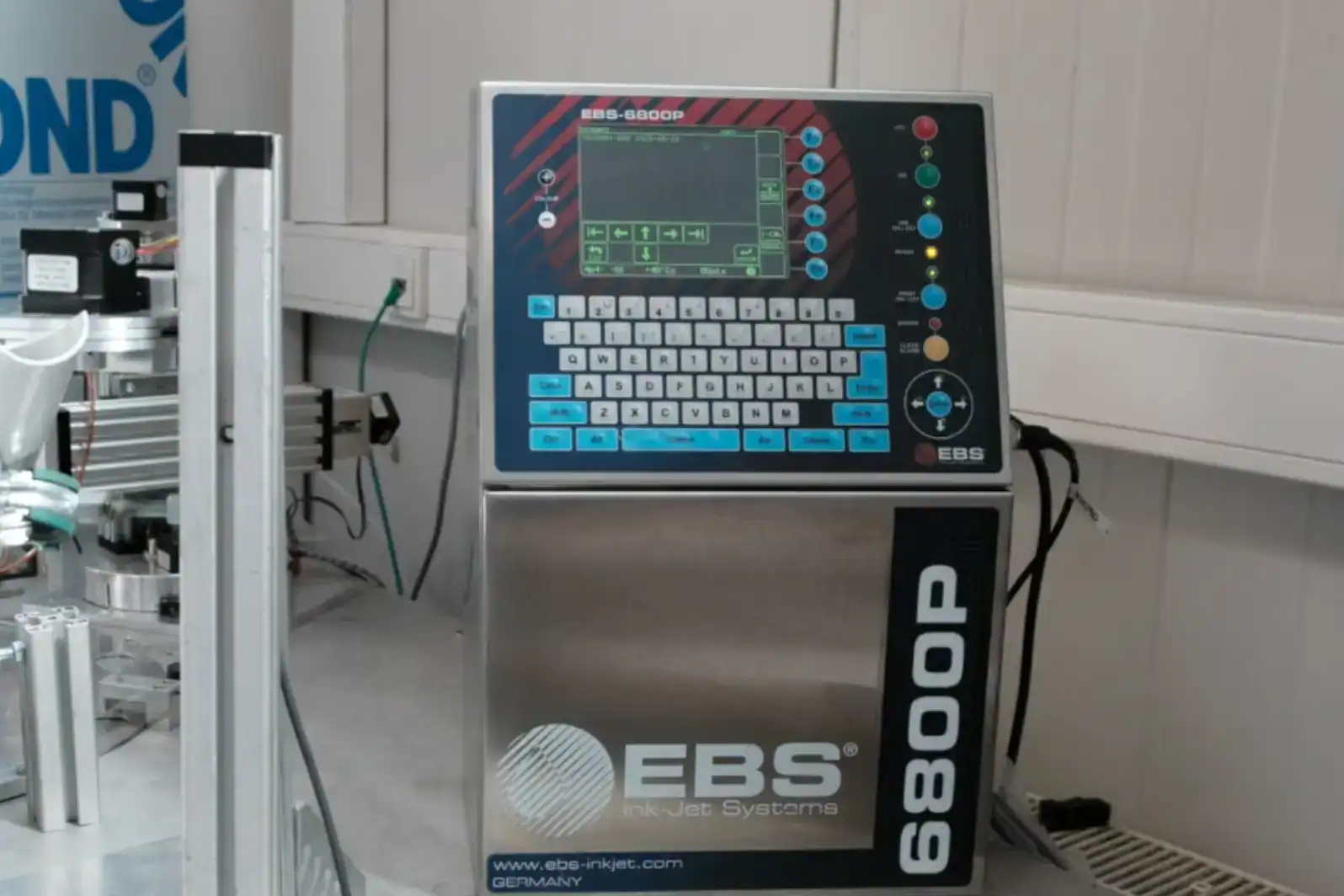

EBS-6800P

EBS-6800P is the name of our printer designed for pigmented inks. The printer is an industrial single-head inkjet printer designed for non-contact coding of moving objects on a factory conveyor belt with up to 500m/min (@ 5×5 matrix).

High constrast

The special field of our EBS-6800 is the processing of pigmented inks. These have the advantage that they are extremely rich in contrast and are very good visible on a wide variety of surfaces.

Degree of protection IP44 as standard

IP44 or IP54 – Protection of the housing against the ingress of water and coarse dust allows to ensure the reliability of the printer for a long time. The printer’s keyboard and screen and all ports are protected against chemicals and water spray. (IP 54 optional available)

The new generation of BOLTMARK ® II printers has increased in terms of performance, functionality and reliability. Our engineers have created a product that will not let you down, even under the toughest conditions, and will also work highly efficiently.

Extremely low power consumption (only 19 W) creates a new quality in the CIJ printer segment. With low consumption of consumables, the BOLTMARK®-II series printers take the lead in eco-friendly and economical marking equipment.

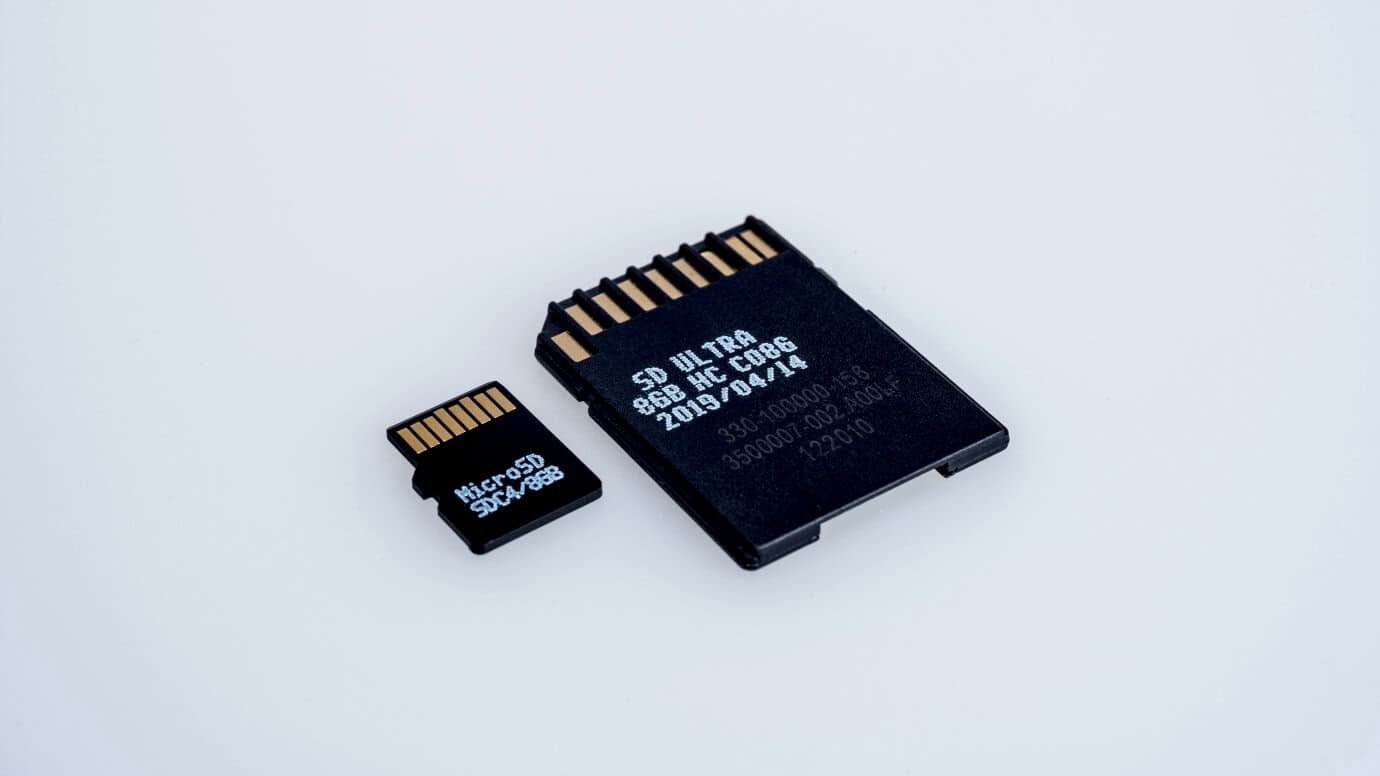

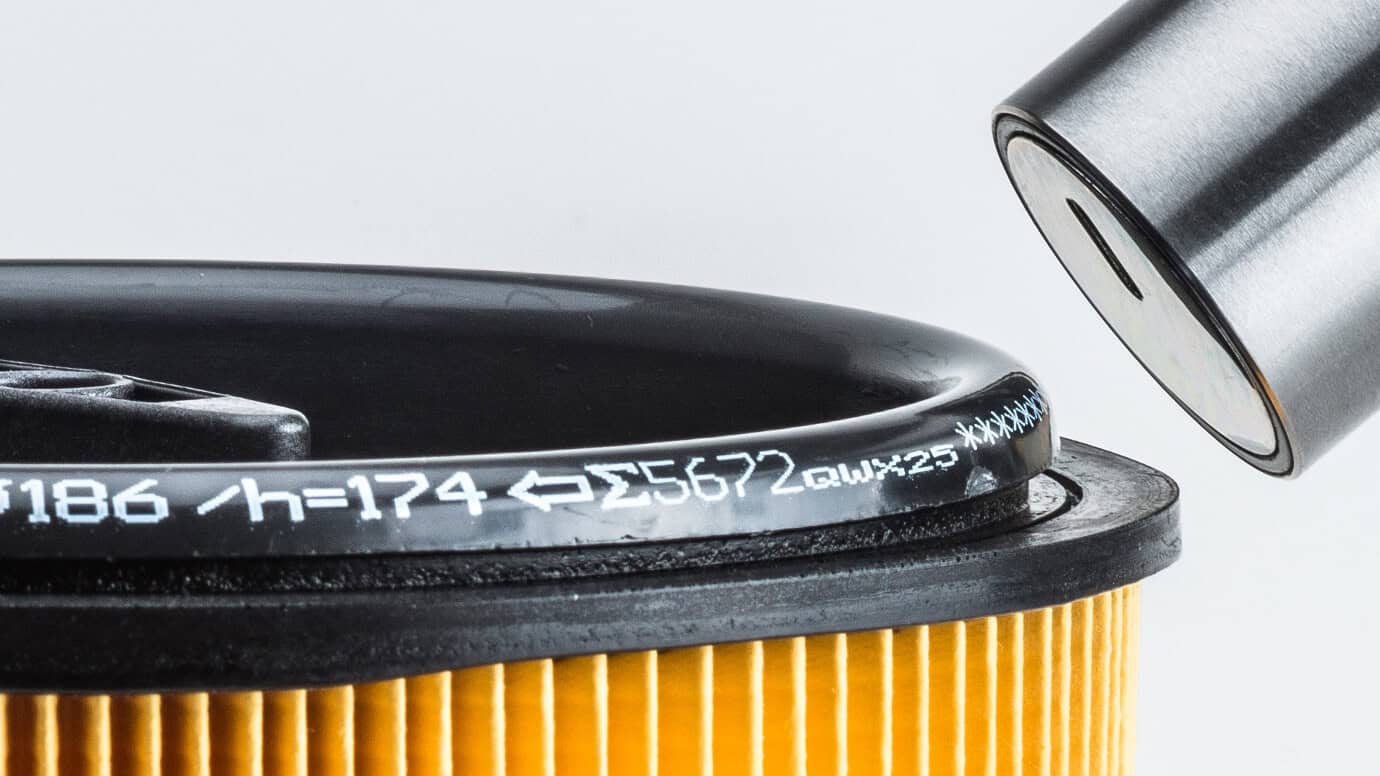

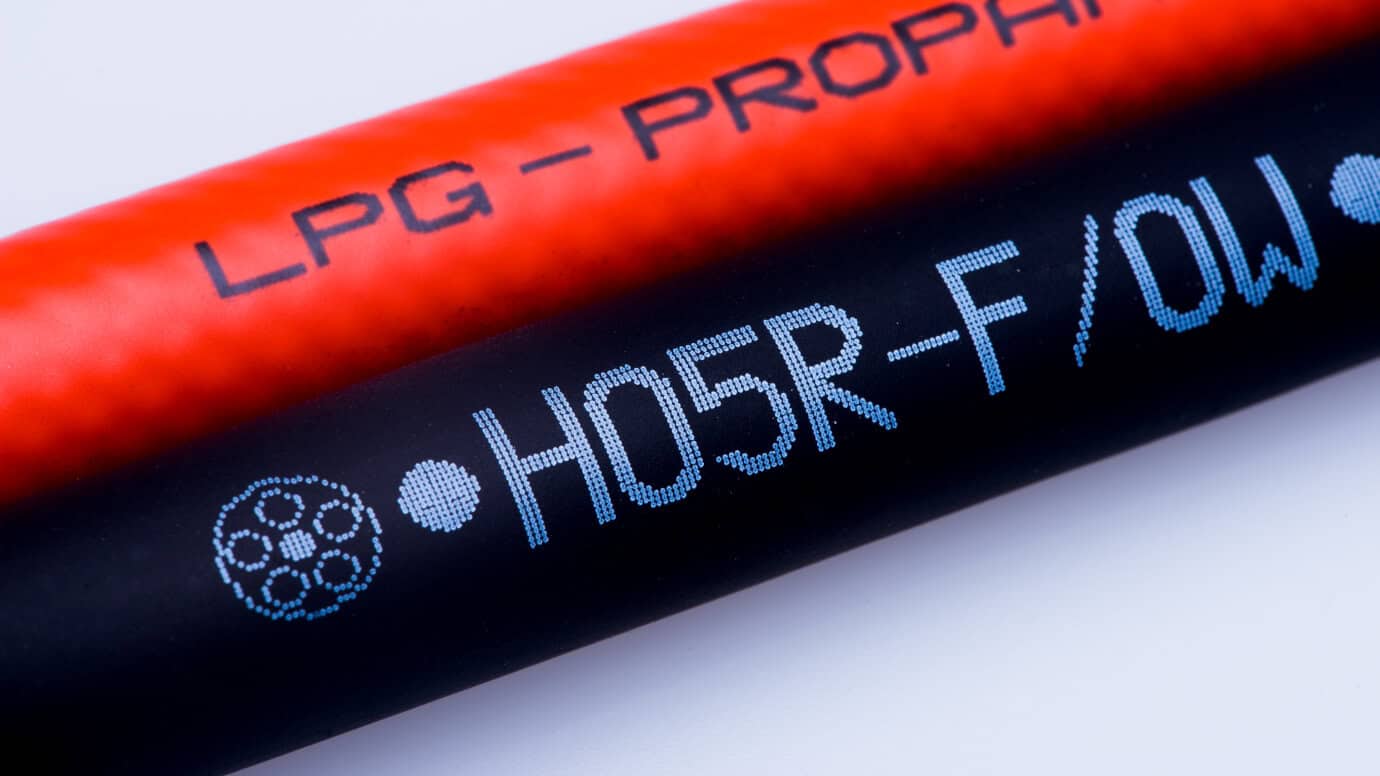

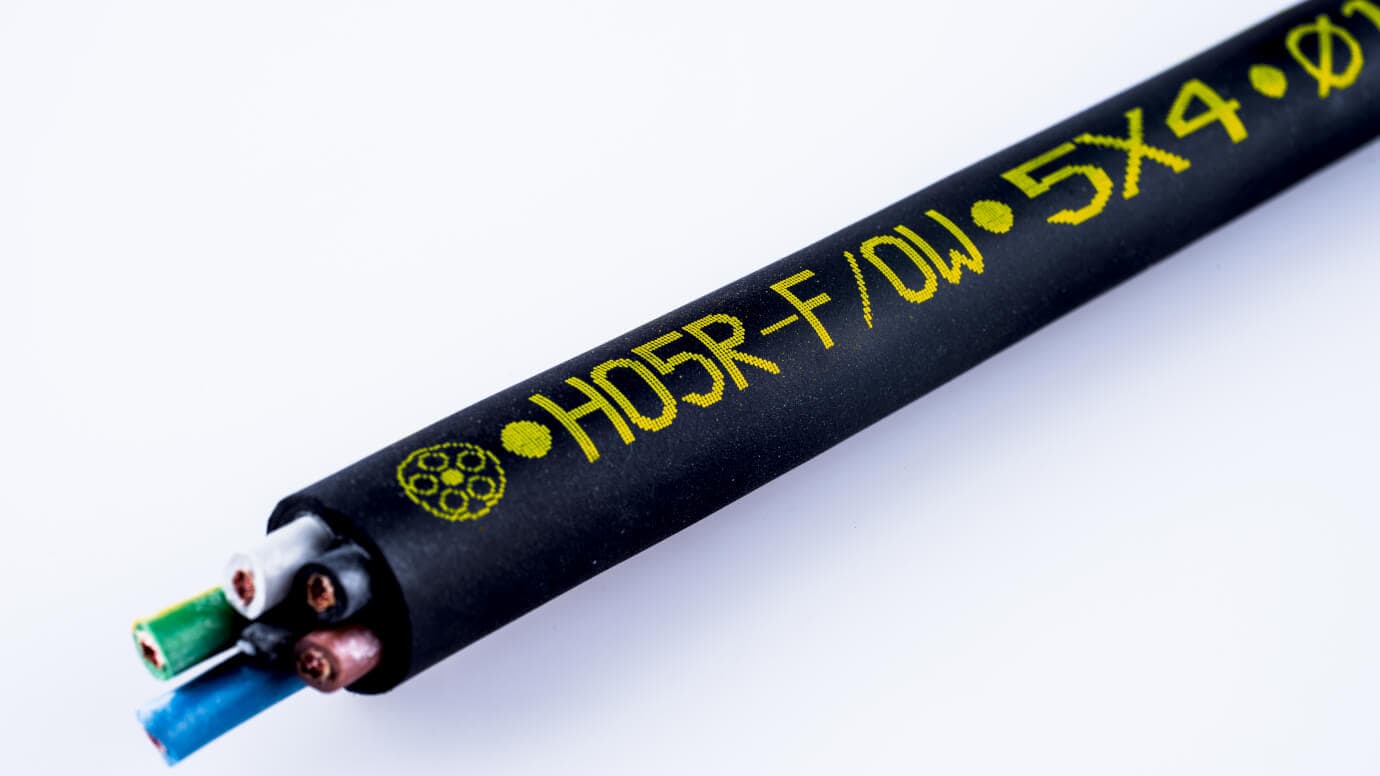

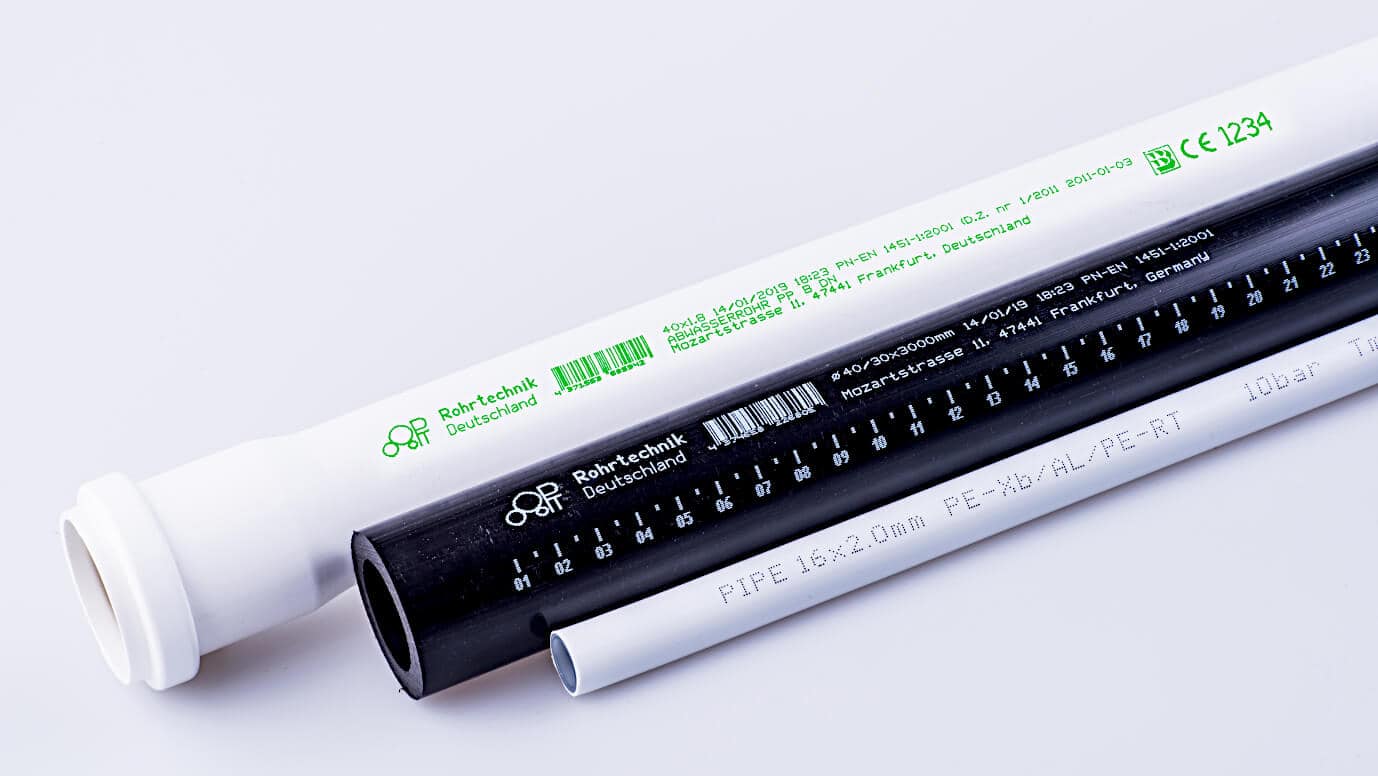

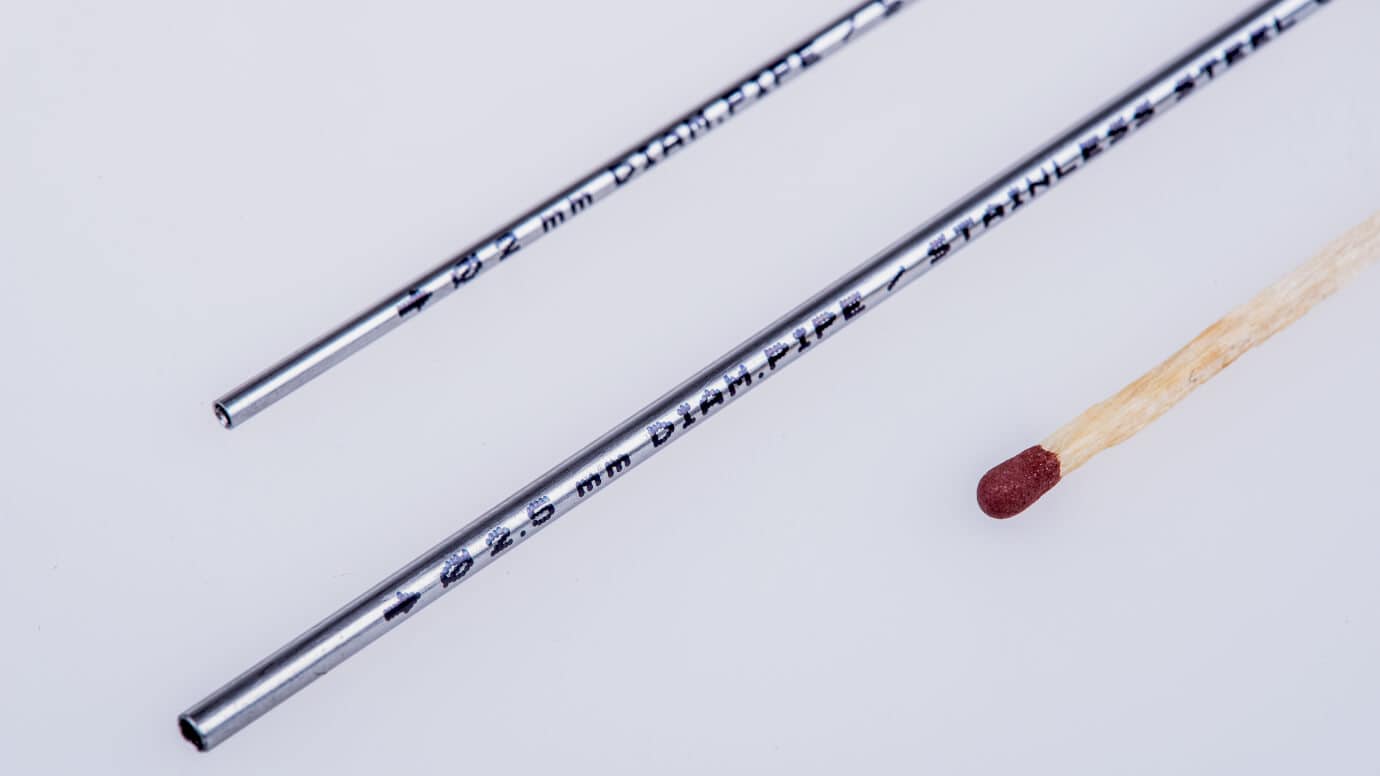

Printout gallery

Parameters

Physical facts

Housing stainless steel

Housing dimensions

  •  width 300mm
  •  hight 470mm
  •  depth 211mm

Printhead dimensions straight diameter

  •  Ø 40mm; length 198mm
  • angular diameter Ø 40mm; length 127mm; height 130mm

LCD dimensions 5,7″/144,8mm

Weight about 13,8kg without fluids

IP protection class, printer casing(excluding the printhead)

  • IP44 (standard)
  • IP54 (option)

Technical data *)

Number of printheads 1

Printer position during printing vertical

Printhead position during printing any

Head cable

  • head cable length 3m

Distance from the printhead to an object from 0 to 30mm

Connections

  • USB, current efficiency 300 mA
  • ETHERNET
  • PHOTO (photodetector input)
  • SHAFT (shaft encoder input)
  • optional connections (e.g. RS-232)

Terminal a built-in terminal equipped with an air tight, splash proof, chemicals resistant alphanumerical keyboard and a big touch control LCD (touch screen)

Print release photodetector (other detectors can be connected, if required by a user)

Timing of print columns

  • internal generator
  • shaft-encoder

Working conditions

Enviroment working temperature from

  • +5 to +40°C (from 41 to +104°F), for static operation
  • +15 to +40°C (from +59 to +104°F) for dynamic operation
  • relative humidity: up to 90% without condensation

Acceptable exposure to vibration and impacts

  • vibration: max. 1g, max. 10Hz
  • shocks:    max. 1g, max. 2ms

Power supply

  • supply voltage: 100-240 VAC, 50/60 Hz
  • max. current consumption: 0,65 – 0,3 A

Compressed air not required!!!

Required inactive time none, the device can run uninterruptedly for 24 hours

Specifications *)

Print height  from 1,2 to 14mm

Maximum dots 16 (optional 25 or 32)

Number of texts

  • about 1000 (standard)
  • about 2000 (option)

Graphics

  • edited with graphics editor
  • maximum height is determined by selected text profile

Types of subtextes

  • CHARACTER STRINGS
  • GRAPHICS
  • BAR CODE
  • TEXT NAME

Subtexts whose contents are:
‑ static,
‑ dynamic (so called special registers: counters, date, expiration date, time, shift identifier, external data, variable field, text contents).

    Character matrices

    • Latin: 5×5, 7×4, 7×5, 9×5, 9×7, 11×7, 12×6, 12×7, 14×9, 16×9, 16×10, 16×14,                                      21×15, 25×15, 32×18 and any combination of the a/m matrices can be used                                      within the restrictions imposed by a selected text (including national characters: German, Polish, Danish, Spanish, Swedish, Turkish, Portuguese, Greek, Czech, Slovak),
    • Cyrillic: 5×5, 7×6, 9×7, 12×7, 12×9, 16×10, 25×19, 32×24 (including Ukrainian,                              Kazakh characters),
    • Arabic
    • Armenian
    • Japanese
    • Chinese

      Bar codes

      • 1-dimensional (1D) codes: Datalogic, Matrix, 2/5 5 Bars, 2/5 IATA, Interleaved, Code 39, EAN‑8, EAN‑13, EAN‑13 +EAN5, UPC‑A, UPC‑A EBS, UPC‑E, CODE 128, EAN‑128, CODE 128B, ITF8, ITF14.
      • 2-dimensional (2D) code: Data Matrix ECC‑200(an option).

        Maximum print rate for Speed=FAST printing parameter

            • 2083 cps – 1 line  5×5,
            • 1890 cps – 2 lines 5×5,
            •   607 cps – 3 lines 5×5,
            •   809 cps – 4 lines 5×5,
            •   489 cps – 5 lines 5×5,
            • 1785 cps – 1 line  7×4,
            • 1247 cps – 2 lines 7×4,
            •  728 cps –  3 lines 7×4,
            •  792 cps –  4 lines 7×4,
            •  709 cps –  1 lines 11×7,
            •  304 cps –  2 lines 11×7,
            •  312 cps –  1 line  16×9,
            •   76 cps  –  1 line   25×15,
            •   31 cps  –  1 line   32×18; with 1 space row between characters.

        Consumables

        Type of Ink pigment, based on methyl-ethyl ketone or ethanol

        Ink color multicolor, provided that ink of one type only is used

        *) note –  the manufacturer reserves that:
        the range of available features, options and printer parameters may vary and depend on the option you have negotiated
